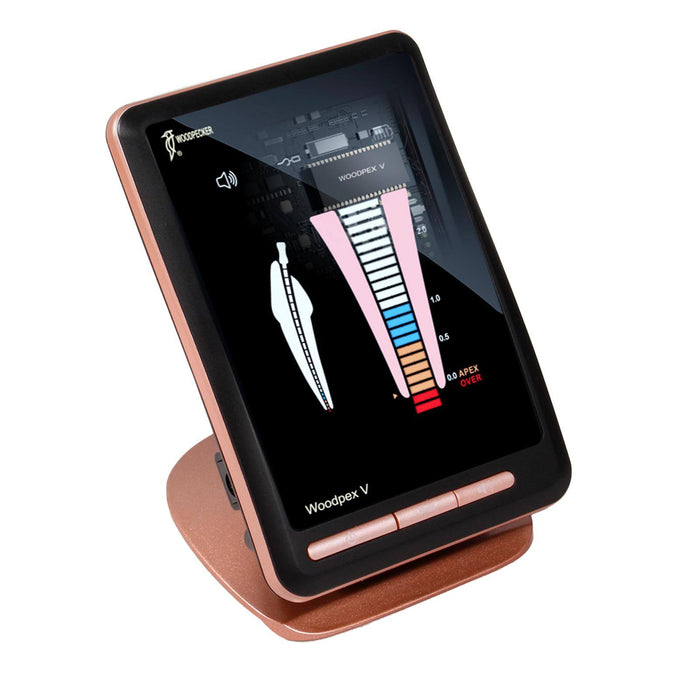

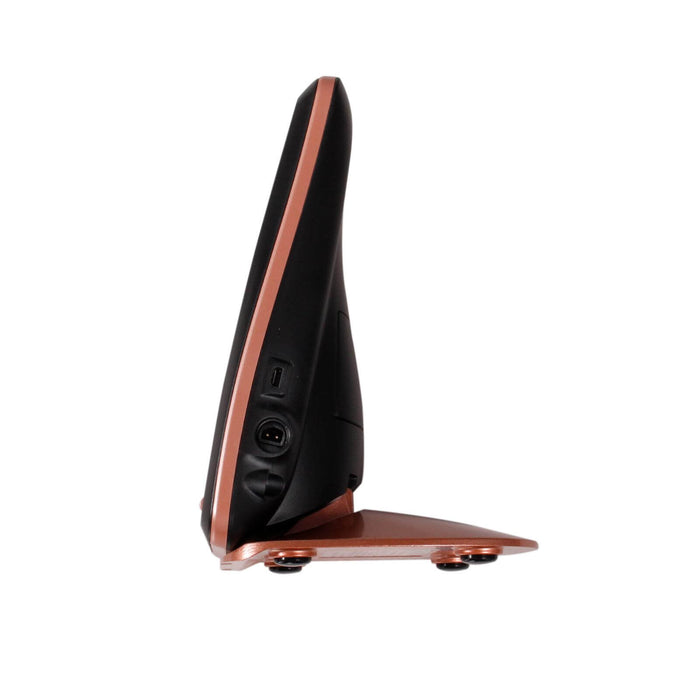

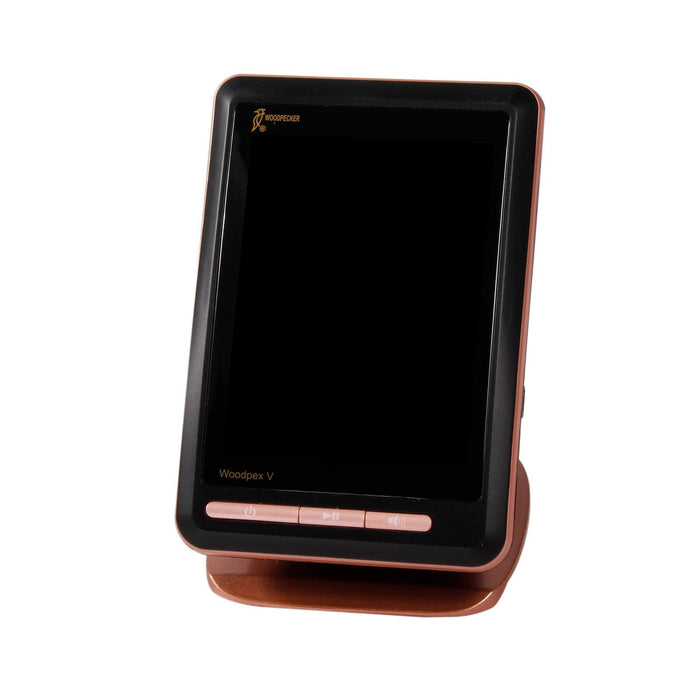

Woodpecker Woodpex V Apex Locator Connectable Endo Motor

in stock, ready to be shipped
Low stock
SKU 10202001
Original price $249.99
Original price
Current price $249.99
Quantity: 1 Set

Free Shipping over$300, 2-7 Days for Delivery.

Accept 30-Day Return or Refund.

Woodpecker Woodpex V Apex Locator. The Fifth Generation 4.5" LCD Connect to Endo Motor. For Dental Endodontic Root Canal Treatment Measurement. More Accurate and Intuitive Measurement. Clear View and Sound. Apical Stop Setting. Folding Upgraded Chip, Innovation Algorithm.  High Sensitivity. Multi-configuration. FDA Approved. One Year Warranty.


  • Apex locator is a supporting equipment of endodontic treatment, through the measurement of the length of apical teeth, helping dentists to finish the endodontic treatment.
  • Equipped with clear bright LCD, clear image and different colors indicate the trajectory of the file clearly.
  • Based on advanced multiple frequency network impedance measurement technology and automatic calibrating ensures the measurements are accurate.
  • The File clip, Lip hook and Touch probe can be autoclaved under high temperature and high pressure. Avoiding cross infection effectively.
  • Battery is rechargeable, unnecessary to replace batteries repeatedly.


    • Accurate: Eliminate interference. Inherit multi-frequency apex positioning technology. Add DSP data processing system. Combined with clinical big data fitting, it can ensure accurate measuring even there are residual pulp and blood in the root canal.
    • New digital circuit Industry recognized U.S. central processing chip. Information processing speed increased by Adopt high-precision components imported from Japan. High resolution signal without distortion. Automatic calibration during 0.5s booting.
    • Simple, Clear view and sound. Zoom in on the apical 1/3 narrow part. Subdivision from 11-19. More accurate and intuitive measurement trajectory, effectively preventing perforation. When the file is less than 2mm from the apical foramen, there will be intermittent low-frequency beeps prompt.
      When the file approaches the apical foramen, the sound gradually rushed. When the file reaching the preset position of the apex, there will be continuous high-frequency beeps prompt.
      The sound level can be adjusted, and the position can be distinguished by sound, making measurement easier.
    • Apical stop setting. Add the apical stop alarm function. The alarm position can be adjusted freely according to clinical needs. Flexible seeting, timely remined to measure distance. Reposition the display location of 0.5mm from the apical foramen.
    • Multi-configuration. File clip x4; Lip hook x5; Probing x2


    • Adapter: 100V~240V, 50Hz/60Hz
    • Consumption power: ≤0.5W
    • Battery: 3.6V/ 750mAh
    • Screen: 4.5’’ LCD
    • Weight: 0.74lb (336g)
    • Dimension: 3.3"×3.5"×4.4" (84mm×88mm×112mm)

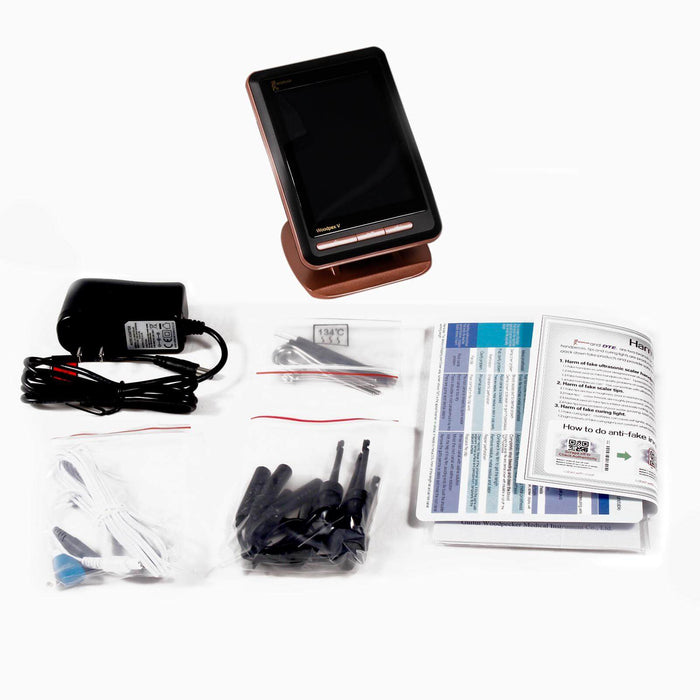

    Packing List

    • 1*Main unit
    • 1*Measuring wire
    • 4*File clip
    • 5*Lip hook
    • 2*Measuring file
    • 1*Adapter
    • 1*Tester
    • 1*Battery
    • 1*Instruction manual
    • 1*Quality certificate
    • 1*Warranty card
    • 1*Packing list
    • 1*Enlarged display of apicaformen
    • 1*Apical stop cue cards
    • 1*Troublrshooting card

    Intend to Use

    This equipment applies to the measurements below:
    • Measurement of pulpitis, pulp necrosis, periapical periodontitis and tooth length.
    • Measurement of the tooth length before restoration of post crown.
    • Measurement of the tooth length of transplantation and retransplantation.


      We offer ONE years free repair on main unit and six months on spare parts from the date of purchase with warranty card.
