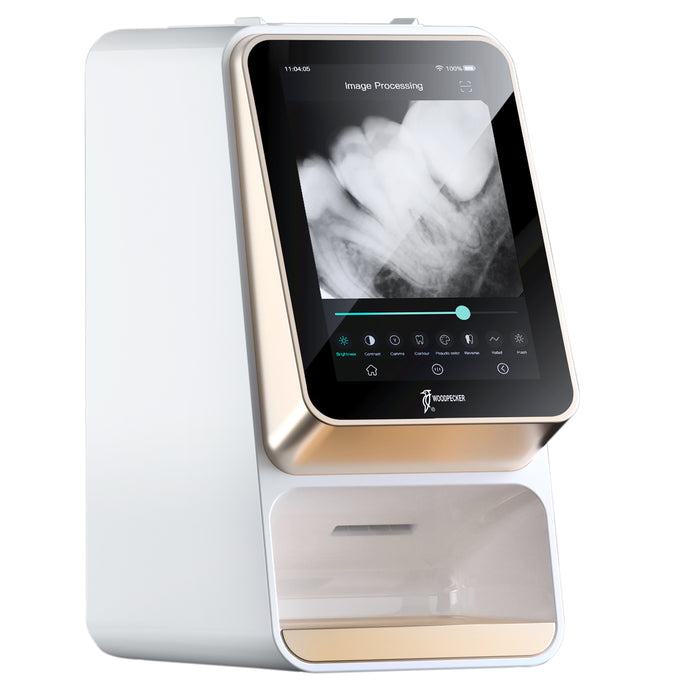

Woodpecker Dental i-Scan Wireless PSP Imaging Plate Scanner with Free Software, 7" Ultra High Resolution Touch Screen, 25um Advanced Micro-spot Laser Scanning Technology, Ultra Clear and Smoother Image, More Reliable Diagnosis Basis, 0.4mm Ultra-thin Imaging Plates (1x S0,1x S1, 2x S2), Can be Used Over 1000 Times. Softer than Conventional Films, Two Year Warranty.

Features

  • Effective, clear imaging for reliable & accurate diagnosis.
  • Ultra-high resolution, 7" touch screen display.

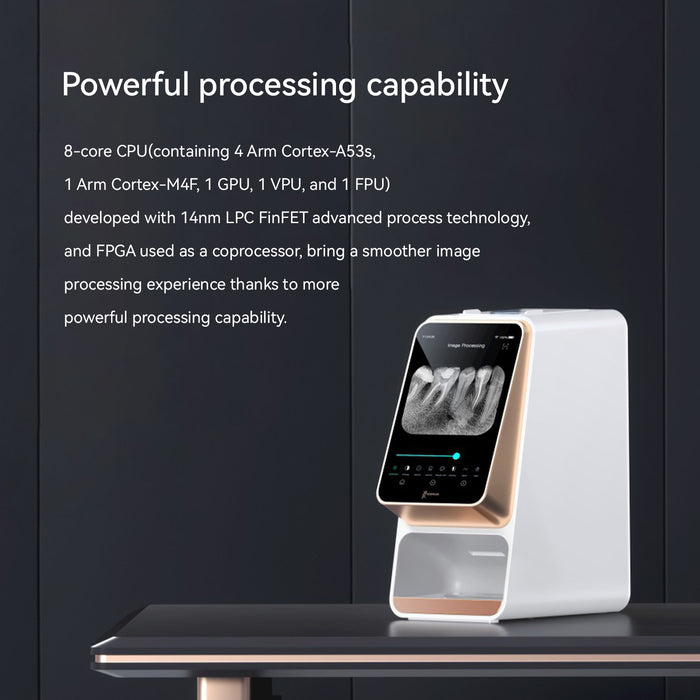

  • Powerful 8 core CPU for a clearer, smoother image.

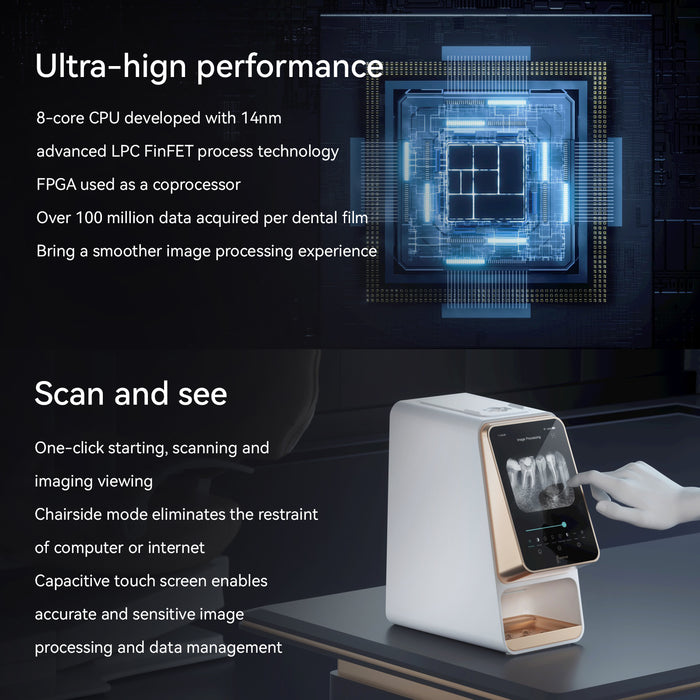

  • Intuitive, simple, one-touch operation.
  • Accurate image processing.
  • Flexible, simple use with wireless connection.

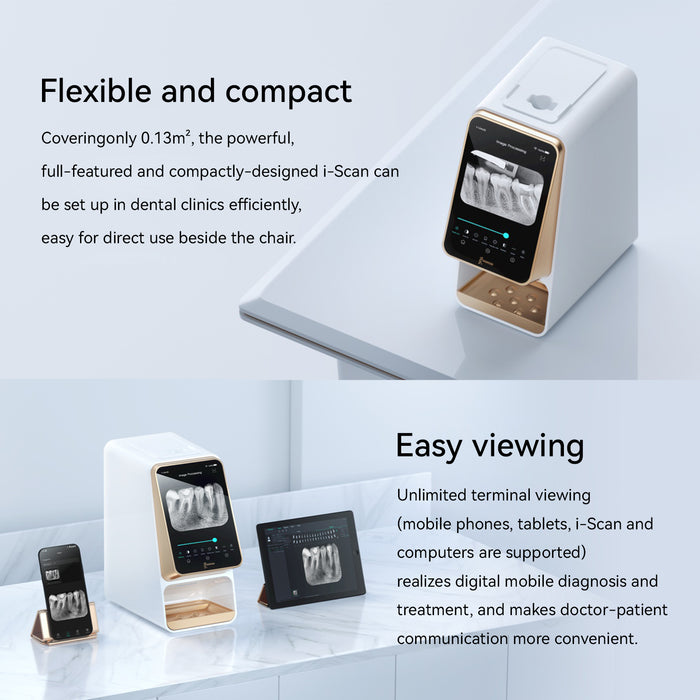

  • Sleek, compact design to fit your surgery.
  • Easily use the i Scan alongside your chair with Chairside Mode.
  • Powerful Software. One-click installation, easy operation and all-round function.
  • Can be used solely as touch screen, or connected to a mouse and keyboard for use as in independent computer unit or connect wirelessly to device.
  • Unlimited digital viewing with wireless connection - View across Smart phones, tablets & computers as well as the Main unit.
  • Wireless functions allow for mobile viewing & improves Doctor-Patient communication.
  • Ultra-thin imaging plates which can be reused over 1000 times.
  • Compatible to all 4 plate sizes (0-3) to allow for various tooth positions.
  • 0.4mm plates, softer than conventional films.
  • CE certified 2 Year Warranty

    Intended Use

    • This product can convert the image information stored on the IP board into digital X-ray dental film, and display and edit it through the host screen or computer. Equipped with image management software can achieve image acquisition, information management and other functions. Expected use environment: dental clinic or hospital. This product is specially designed for professional medical personnel and can only be used by qualified and fully trained medical personnel.
    • It's mainly used to scan the latent image information of IP imaging plate to form intraoral dental digital X-ray image, and to browse, process and consult the image.

      Technical Parameter

      • Power input: 100-240V 50/60Hz,1.1A
      • Power adapter output: DC 15V 3.2A
      • IP imaging plate model: 0; 1; 2; 3
      • Threshold contrast: 4 holes of 1.0 mm, 1.5 mm, 2.0 mm and 2.5 mm can all be distinguished.
      • Image uniformity: <2%
      • Max output of laser radiation: 28mW
      • Emitted wavelength(s) : 651-665nm
      • Weight: 4.5kg
      • Effective imaging area: (Maximum dimensions (mm))
      Specifications X-direction Y-direction
      0 21 32
      1 23 39
      2 30 40
      3 26 53
        • Scanning speed
        Scan mode  Scan time
        Fast scan 7
        Hige-precision scan 10
        Ultra-hige precision scan 15

          Packing List

          • Main i Scan Unit *1
          • Power adapter *1
          • IP Imaging Plate #0 *1
          • IP Imaging Plate #1 *1
          • IP Imaging Plate #2 *2
          • Protective Barrier Envelope #0 *1
          • Protective Barrier Envelope #1 *1
          • Protective Barrier Envelope #2 *2
          • Protective Card for IP Imaging Plate #0 *1
          • Protective Card for IP Imaging Plate #1 *1
          • Protective Card for IP Imaging Plate #2 *2
          • Storage boxof IP imaging plate *1
          • U Disk *
          • Cleaning cloth *2
          • Tips for using *1
          • Quick installation guide *1
          • Instruction Manual *1
          • Warranty Card *1
          • Qualified certificate *1
          • Packing list *1

            Warranty

            Two year's free repair for the whole unit from the date of purchase. Lifetime maintenance.
