Woodpecker UDS-E LED Ultrasonic Scaler 8 Tips 2 Water Bottles Scaling+Perio+Endo

in stock, ready to be shipped
Low stock
Low stock
SKU 49301004
Save $415.99 Save $30.00
Original price $349.99
Original price $349.99
Original price $349.99
Current price $319.99
Current price $319.99
Quantity: 1 Set

Free Shipping over$300, 2-7 Days for Delivery.

Accept 30-Day Return or Refund.

Original Woodpecker Dental UDS-E LED Ultrasonic Pizeo Scaler Cavitron 110V. EMS Detachable Handpiece HW-5L. 8 Tips. Scaling, Perio, Endo and Auto Water Supply Functions. Two Water Bottles 350mL and 500mL. Digital Control Automatic Frequency Tracking. Easy Operation. Comfortable Scaling. For Dental Calculus Elimination and Root Canal Treatment. FDA Approved. One Year Warranty.


  • FDA/CE 0197 Approved.
  • With auto-water supply function, easier operation.
  • Controlled by PC, easy operation and more efficient for scaling.
  • Less heat from tip during operation. Improve comfort degree of patients.
  • Optical handpiece, more convenient for clinical operation.

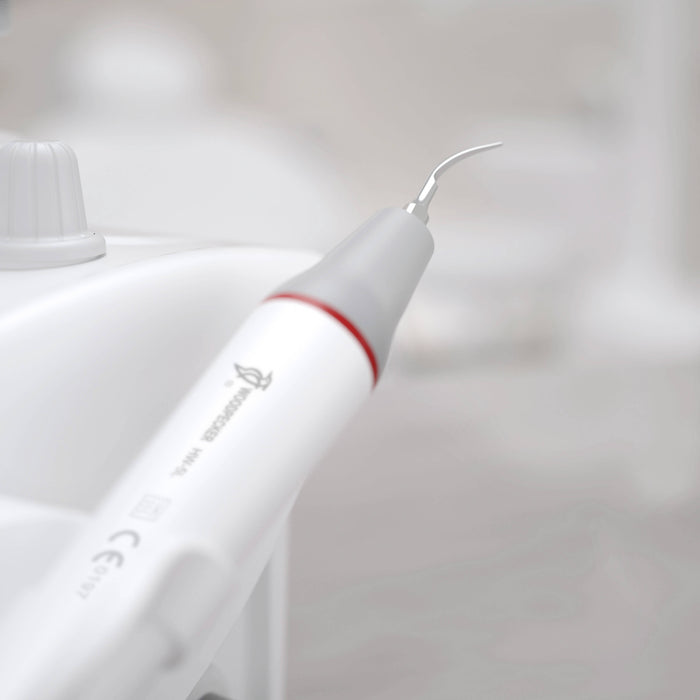

  • Detachable handpiece HW-5L with light, better visibility and can be autoclaved to the temperature of 134°C and the pressure of 0.22MPa.
  • Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
  • The new product UDS-E LED ultrasonic scaler used for teeth cleaning and also an indispensable equipment for teeth disease prevention and treatment.
  • The device has scaling, perio, endo and auto-water supply functions with the following features. These features make UDS-E LED become a new generation product in the world dental market.
  • The inner water pipe is made from antiseptic material, clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.

Technical Parameter

  • Operating mode: Continuous operation
  • Power input: 110V ~ 50Hz/60Hz
  • Main unit input: 24V~ 1.3A
  • Output power: 3W ~ 20W
  • Frequency: 28kHz ± 3kHz
  • Water pressure: 0.01MPa ~ 0.5MPa
  • Main unit weight: 2.6lb (1.17kg)
  • Adapter weight: 2.2lb (1kg)
  • Dimensions: 9.2"×7.6"×4.3"(234mm×193mm×109mm)
  • Package: 1pc/box, 4boxes/ctn

    Packing List

    • 1* UDS-E LED Ultrasonic Scaler
    • 1* Detachable handpiece(HW-5L)
    • 1* Power supply
    • 1* Foot switch
    • 4* Scaling tips: G1x1, G4x1, G5x1, G6x1
    • 3* Perio tips: P1x1, P3x1, P4Dx1
    • 1* Endo tips: E1x1
    • 1* Tip holder 2#
    • 1* Endo wrench
    • 1* Torque wrench
    • 1* Water pipe
    • 6* Waterproof "O" ring
    • 3* Handpiece decorative ring
    • 4* Sealing ring
    • 1* LED lamp
    • 1* 350mL water bottle
    • 1* 500mL water bottle
    • 1* Instruction of LED lamp replacement
    • 1* Instruction manual
    • 1* Qualified certification
    • 1* Warranty card


    One year warranty
