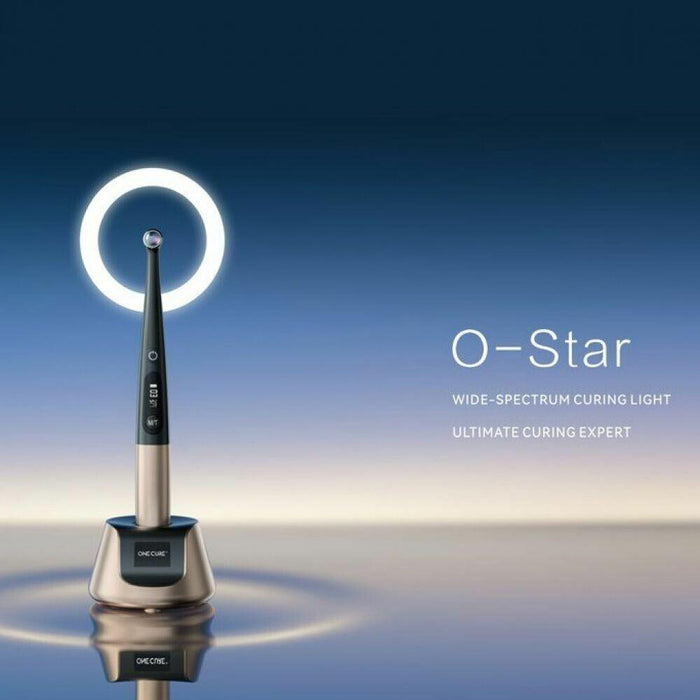

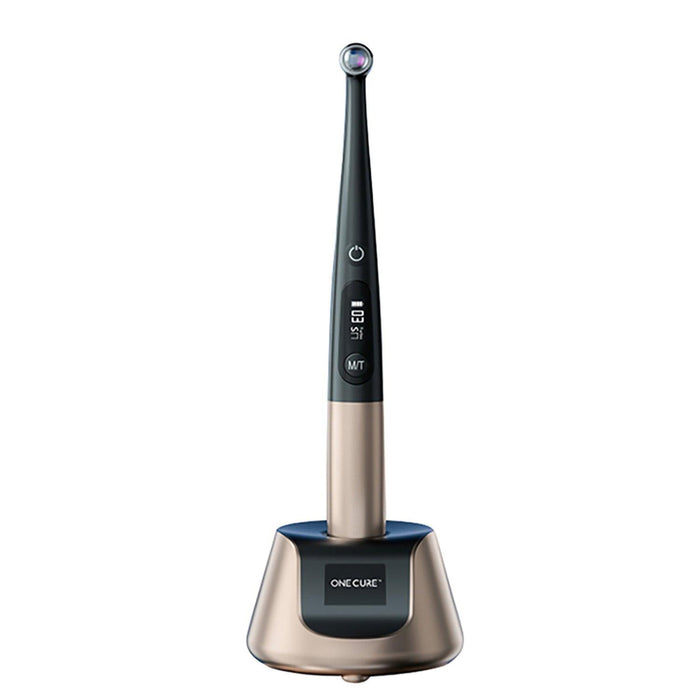

Original Woodpecker Dental O-Star One Cure Wide-Spectrum Curing Light Ultimate Curing Expert. 7 Working Modes: Normal, High, Turbo, Ortho, Soft, Pulse, and Check. 360° Rotatable Head. 385-515nm Wave Length. Light Intensity up to 3000MW/cm2. Charging Base with built-in Light Meter. All-metal and Compact Body. Equipped with OLED Screen. 10mm Active Curing Area, 8mm Active Curing Distance. Uniform Beam, Strong Penetrability. Less Light Loss. Wireless Charging. One Year Warranty. 【O-Star Product Introduction】
- Small but Powerful Making a Big Difference
Full-metal body, ergonomically-streamlined and 108g lightweight design, without fatigue from extended usage periods. Anti-shock and durable.
- 7 Modes to Fully Meet a Variety of Clinical Needs
It has Normal, high, turbo, ortho, soft, pulse, and check modes. Like an all star, O-Star is strong in performance, well-controlled and can fully meet various clinical needs.

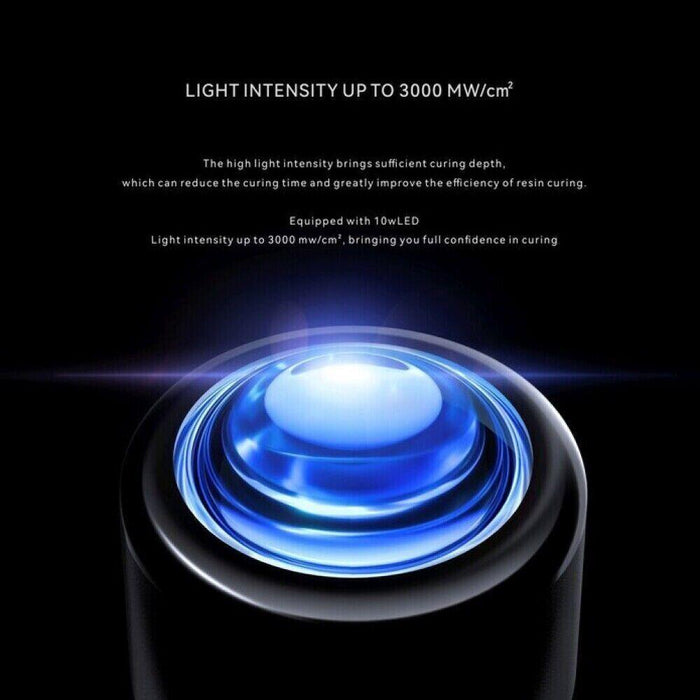

- Light Intensity up to 3000MW/cm²
The high light intensity brings sufficient curing depth, which can reduce the curing time and greatly improve the efficiency of resin curing.Equipped with 10w LED, bringing you full confidence in curing.

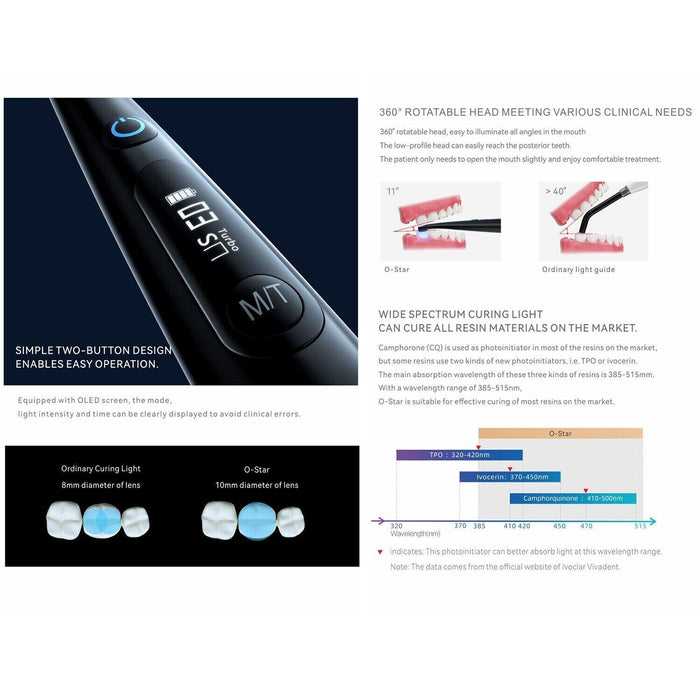

- 360° Rotatable Head Meets Various Clinical Needs
360° Rotatable head, easy to illuminate all angles in the mouth. The low-profile head can easily reach the posterior teeth. The patient only needs to open the mouth slightly and enjoy comfortable treatment.

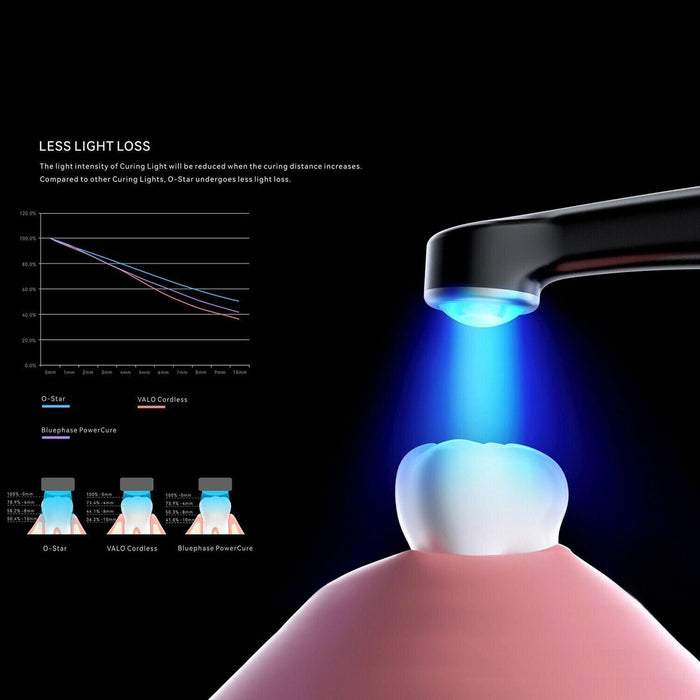

The light intensity of curing lights decreases when the distance of the curing light increases. Compared to other curing lights (VALO Cordless / Bluephase PowerCure) the O-Star undergoes less light loss.
- Uniform Beam, Strong Penetrability
More-focused light output thanks to the light angle of only 15.8º, ensuring good deep curing effect.
- Charging Base with Built-in Light Meter
There is a light meter built in to the charging base. Accurate light intensity is required for efficient polymerisation of the resin, bringing you and your patients the best treatment experience.

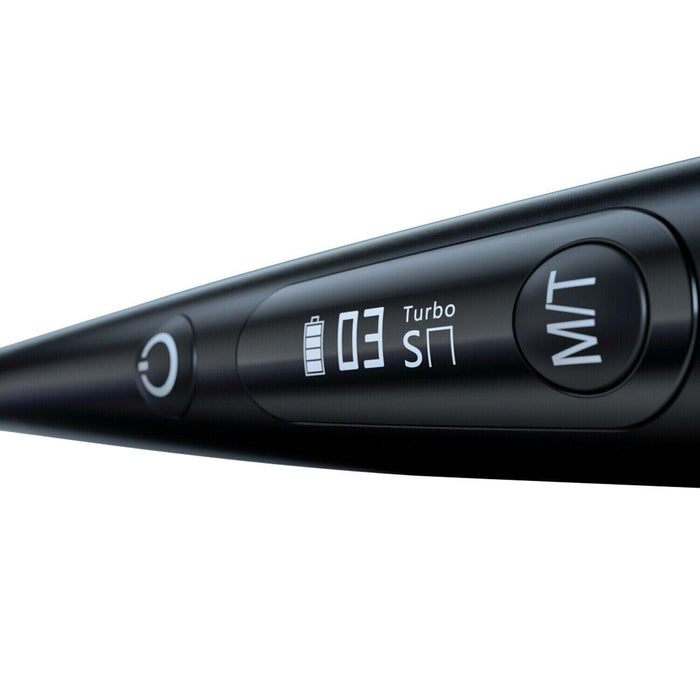

- Simple Two-button Design Enables Easy Operation
Equipped with OLED screen, the mode, light intensity and time can be clearly displayed to avoid clinical errors.
- Adapter input: 100-240V~ 50/60Hz 0.4A Max.
- Battery: 18500, 2000mAh
- Wave length: 385nm~515nm
- Light intensity: 1000mW/cm2-3000mW/cm2
- Active Illumination range: 8mm depth, 10mm dia.
- Size of main unit: 8"x1"x1" (204 x23 x23mm)
- Net weight: 0.24lb (108g)
- Package: 1pc/box, 20boxes/ctn
7 Working Modes
||5s, 10s, 15s, 20s
||Suitable for most treatment scenarios, such as fillings, restorations, etc.
||5s, 10s, 15s, 20s
||Suitable for quick curing, ensuring enough curing depth.
||Ultra-high light intensity for minimal curing time, 2mm resin in 1 second.
||3s five burst, 3s ten burst
||High light intensity with strong penetrability, especially suitable for orthodontic bracket bonding.
||5s, 10s, 15s, 20s
||Gradual increase of light intensity to effectively reduce resin shrinkage.
||5s, 10s, 15s, 20s.
The LED will stop for 0.4s at an interval of 0.6s curing.
|When working in a cycle of treatment, it can effectively reduce heat generation, efficiently dissipate heat and ensure the comfort of diagnosis and treatment.
||This mode outputs a single purple light. When special glasses are worn, the caries are obviously orange-red. Detection of caries, calculus and cracked teeth.
- Maint unit *1
- Top of main unit *1
- Light hood *1
- Bathymeter *1
- Adapter *1
- Charging base *1
- Point cure lens *1
- Disposable sleeve *100
- Qualified certificate *1
- Instruction manual *1
- Warranty card *1
Direction To Use
Short press the “M/T” button to select the working mode. Seven working modes can be selected: Normal, High, Turbo, Ortho, Soft, Pulse and Check. Because the curing time of different modes is different, when switching modes, the curing time will automatically follow the switching.
Long press the “M/T” button to change the curing time. Different working modes have different curing times.
One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.
*Tips: In order to protect the device, pls remember to wear a disposable isolation sleeve before using.
