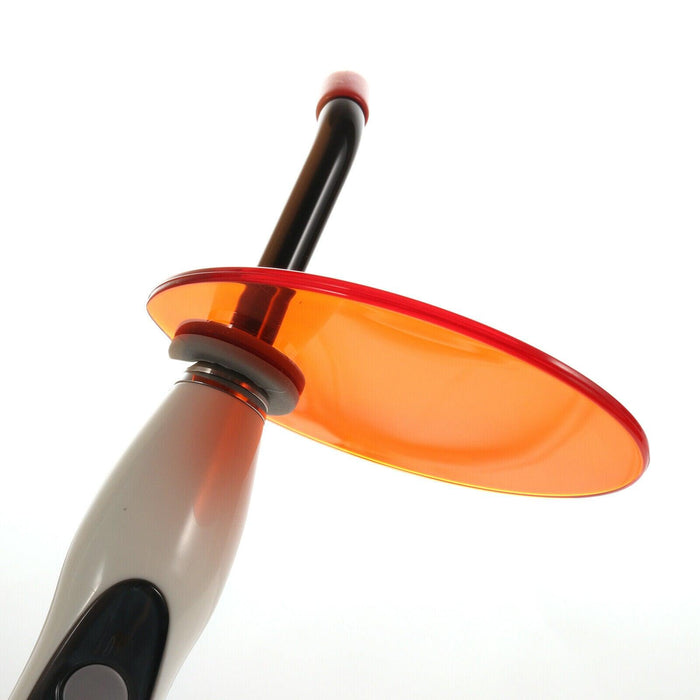

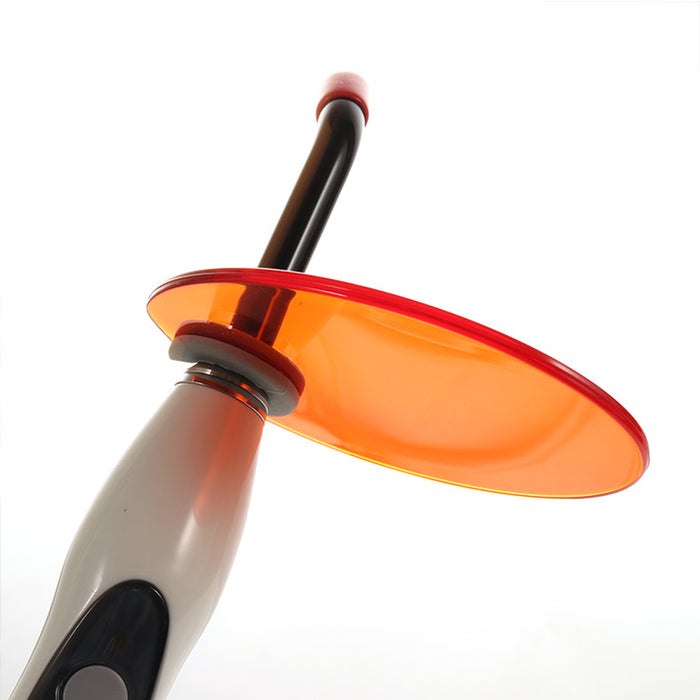

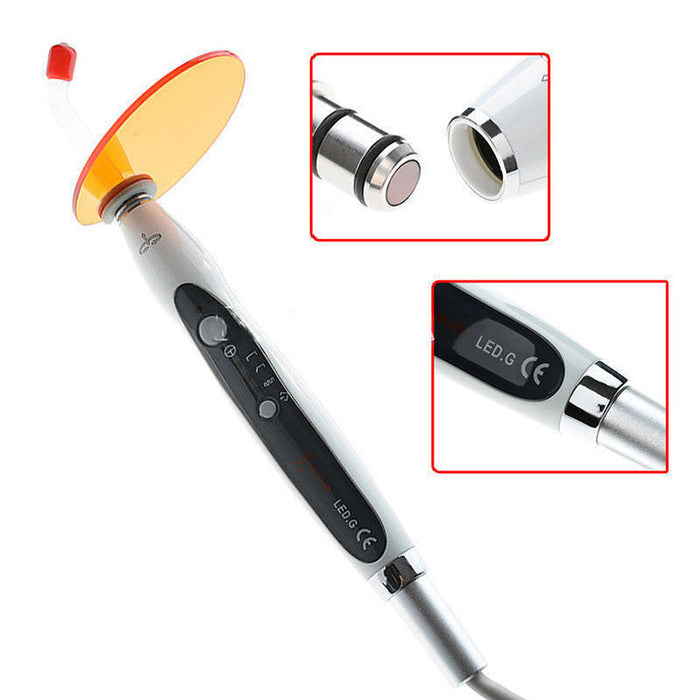

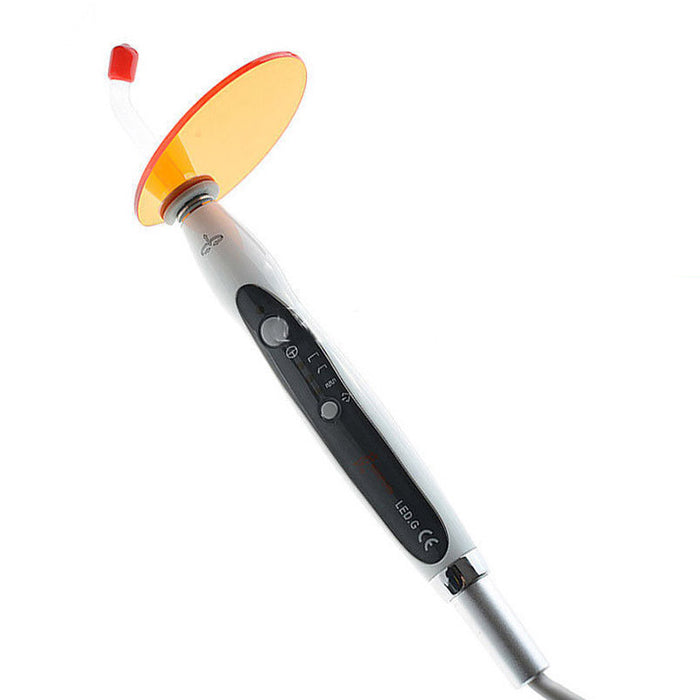

Woodpecker LED G Built-in Curing Light

Original Woodpecker Dental LED G Built-in Curing Light Lamp. Connect to Dental Unit. Three Modes: Full Power, Ramping, Pulse. 360 Degree Rotary. Resin not less than 4mm in 10 seconds. Wave Length 385nm-515nm Wide Spectrum. 1200mW/cm2 Light Intensity. Ergonomics Design. FDA Approved. One Year Warranty.

Features

• FDA and CE0197 Certificated.

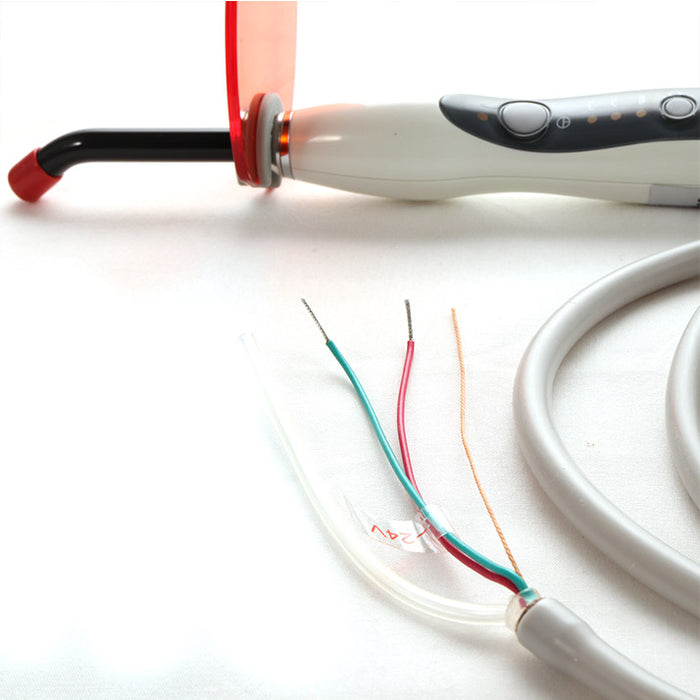

• Sealed, connect to dental unit.

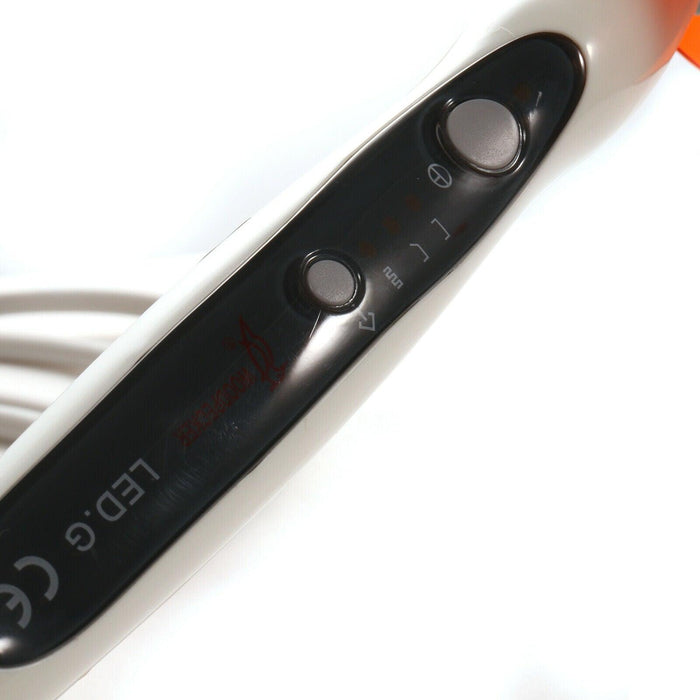

• Three working modes: Full power, Ramping, Pulse
• 360 Degree rotary head, extend the possibility.
• Ergonomics design, optimize the hand-grip use.
• High power blue light LED.
• This device can cure composite resin not less than 4mm in 10 seconds.

• LED G adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time. This device is used to restore teeth and solidify material for whitening teeth.

Technical Parameter

• Power input: 100V to 240V~ 50Hz/60Hz
• Wave length: 385nm-515nm (Wide Spectrum)
• Light intensity: 1000mW/cm2~1200mW/cm2
• Illumination range: diameter appr. 8mm

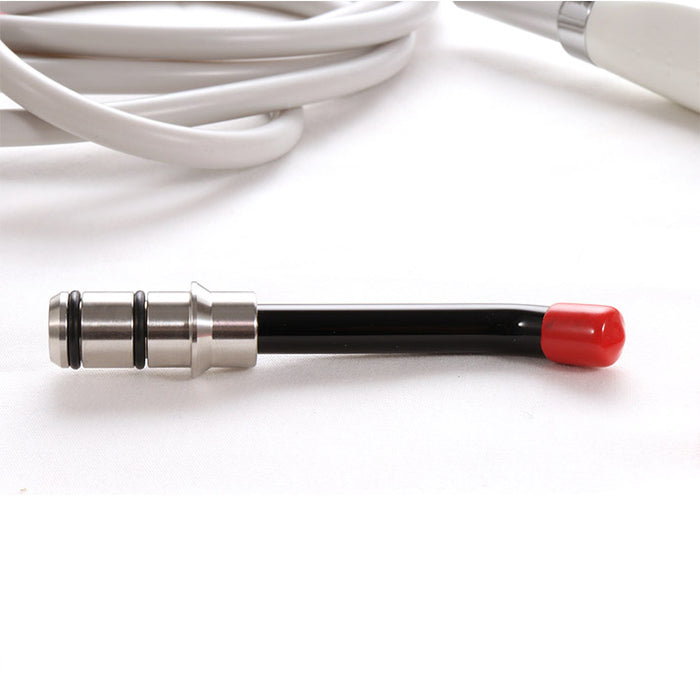

• Optical fiber dimensions: 12mm diameter, 22mm depth
• Dimensions: 1”×1”×10.2” (26×25×260mm)
• Net weight: 4.8oz (135g)

Three Working Modes

• Full power: the blue light radiates in full power.
• Ramping: The blue light power increases stronger continually, after five seconds reaches to the highest power.
• Pulse: The blue light works on the pulse condition. During the operation, aim blue solidification. The working time of all modes is ten seconds.

*Intermittent operation instrument: after work 200 seconds, stop 20 seconds, and then work 20 seconds, stop 20 seconds, work in the rule as above circularly.
