Introducing the Woodpecker Dental iLED MAX Curing Light. This wireless unit features a 360° rotary design and offers 1-second curing for 2mm resins. With an upgraded focused light intensity of 2500mW/cm², it ensures efficient curing. The metal head is complemented by an upgraded wide spectrum of 385nm-515 nm, providing an 8-10mm illumination range. Designed with high light intensity and an ergonomic fluid design, this device includes two working modes and is powered by a 1400mAh rechargeable lithium battery. It is FDA approved and comes with a one-year warranty.
Features
-
FDA and CE0197 Certified
-
5W High-Power Blue Light LED
-
Cures 2mm resins in just one second, providing rapid results.
-
360-Degree Rotary Head—enhances versatility and application range.
-
Constant Power Output—designed specifically for dental restoration.
-
Particularly effective for orthodontic brackets, porcelain veneers, and post-core adhesives.
-
Upgraded Wide Spectrum—the wavelength shifts from a single blue light to blue-violet light, enabling the curing of all materials.
-
Enhanced Light Intensity—offers two modes, with a maximum intensity of 2500mW/cm².
-
Focused Light Output—utilizes unique Woodpecker technology to reduce the light angle by 55.87%, allowing for more concentrated energy and higher curing efficiency.
-
Large Capacity Battery—a full charge allows for over 400 continuous uses in 10-second working time mode.
-
The rechargeable lithium battery has received CB certification and is designed to prevent explosions.
Technical Parameter
-
Power Input: 100V to 240V, 50Hz/60Hz
-
Power Output: DC5V/1A
-
Battery: ICR 18490, 3.7V / 1400mAh
-
Wavelength: 385nm-515nm
-
Light Intensity: 1000 - 2500mW/cm²
-
Dimensions: 1” × 1” × 9.5” (25 × 25 × 240mm)
-
Net Weight: 0.6lb (278g)
-
JMU Model Number (SKU): 18404014

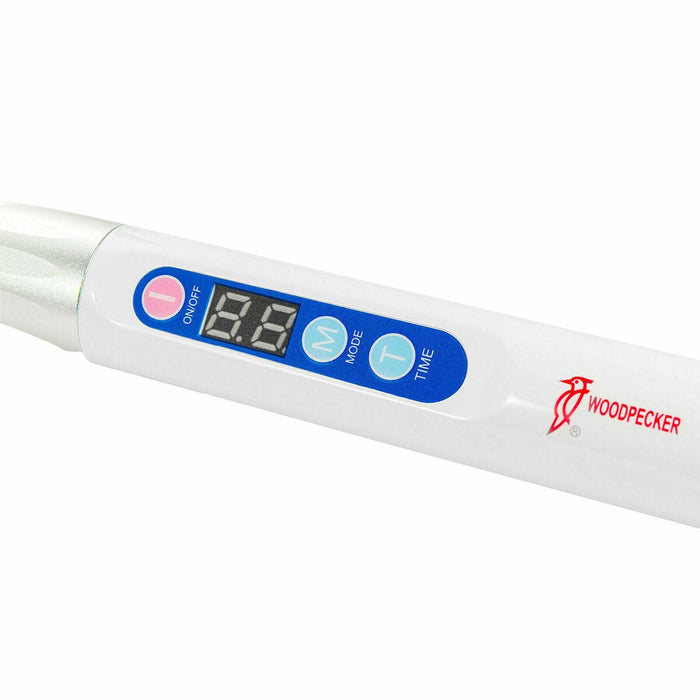

Two Working Modes
HIGH Mode: Indicated by P1 on the screen.
Press the time button to select either 1 or 3 seconds
Output light intensity of 2300mW/cm² to 2500mW/cm².
NORMAL Mode: Indicated by P2 on the screen.
Press the time button to select from 5, 10, 15, or 20 seconds
Output light intensity of 1000mW/cm² to 1200mW/cm².
Packing List
-
Main Unit: 1
-
Light Hood: 1
-
Bathymeter: 1
-
Adapter: 1
-
Charging Base: 1
-
Disposable Sleeves: 100
-
Qualified Certificate: 1
-
Instruction Manual: 1
-
Warranty Card: 1
Warranty
One-Year Warranty
Note: To ensure the protection of the device, please remember to place a disposable isolation sleeve on the unit before use.
