Woodpecker Endo Radar Pro Brushless Endo Motor with Apex Locator

Discover the Woodpecker Endo Radar Pro, a cutting-edge endo motor with an integrated apex locator. This ultra-compact, cordless device enhances workflow and precision with its two-in-one functionality. Featuring a 6:1 speed ratio and a 360° rotatable hand-piece, it offers exceptional control during procedures. FDA approved and backed by a one-year warranty, the Endo Radar Pro is the ideal choice for dental professionals looking to advance their practice in endodontics. Embrace the future of root canal treatment!

Features

• Upgraded Star Product: The Endo Radar Pro boasts a 6:1 speed ratio, ensuring low speed and stable rotation under high torque conditions.

• Dual Functionality: This innovative device facilitates root canal preparation while simultaneously providing length control, enhancing efficiency during procedures.

• Compact Handpiece: Equipped with a brushless motor, the ultra-compact handpiece offers high performance with reduced wear and heat generation, resulting in an extended service life.

• Adjustable Contra Angle: The contra angle features an adjustable reciprocating angle in 10° increments and a forward/reverse range of 20° to 400°. This precise control minimizes the risk of instrument separation and ensures more efficient and safer preparation.

• ATR Mode: Once the preset torque is achieved, the file will reciprocate according to the configured angle, enhancing operational precision.

• High-Performance Brushless Endo Motor: This motor delivers exceptional torque and speed while maintaining lower noise levels. With fast response times and precise output, it ensures efficient and safe root canal preparation.

• Speed: 100 - 250 RPM

• Torque: 0.4 - 0.5 Ncm

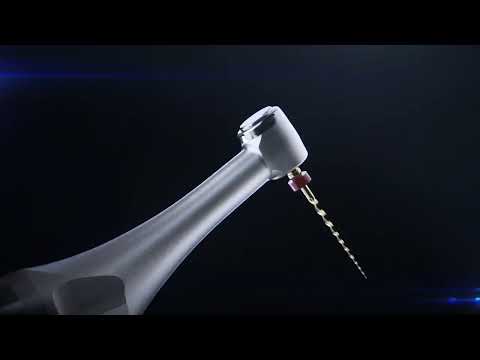

• 360° Rotatable Contra Angle and Super Mini Curved Handpiece: Designed for smooth rotation without the need to remove the contra angle, this setup minimizes noise and vibration, enhancing operator comfort and improving the patient experience during root canal therapy. The Endo Radar Pro handpiece features a diameter reduced by 2mm and circumference reduced by 7mm compared to the Endo Radar Plus, with the contra angle measuring only 8mm in diameter and 9.7mm in height.

• Clear HD LCD Display: The intelligent touch panel offers a smooth, easy-to-clean surface that provides clear feedback for user convenience. The charging base can also function for length determination (apex locator) and is equipped with a 2600mAh battery.

• Auto Start and Stop: The device automatically initiates when the file is inserted into the canal and halts rotation upon withdrawal. It features auto apical reverse, auto apical stop, and gradual slowdown as the file approaches the apical stop.

• Wireless Connection: Operate freely without the constraints of a tail cord, utilizing wireless signals for flexible handling of the handpiece.

• Wireless Charging: The handpiece includes a wireless charging design powered by a built-in 2000 mAh rechargeable lithium battery, allowing for prolonged operation on a single charge.

The Endo Radar Pro is suitable for both the preparation and enlargement of root canals while providing real-time monitoring of the file tip's position during procedures.

User-defined Modes

The system is equipped with 11 user-defined modes designed to adapt to mainstream file systems. The following steps outline the procedure:

1. Utilize a #10 stainless steel K file to probe and negotiate the root canal, allowing for a preliminary determination of the working length.

2. Employ the cavity access file 171.12 to pre-enlarge the coronal third of the root canal and to remove the ferrule at the root canal orifice.

3. Accurately determine the working length and confirm the patency of the root canal.

4. Use the glide path file 12/.vt to negotiate and enlarge the access to the root canal.

5. Apply the glide path file 16/.vt for further negotiation and enlargement of the root canal access.

6. Utilize the file 18/.05 to negotiate the root canal to the working length using the "brushing" and "pecking" techniques.

7. Shape the root canal to the working length with the file 25/.06 by applying the "brushing" and "pecking" methods.

8. Use the file 35/.04 to continue shaping the root canal to the working length, again employing the "brushing" and "pecking" techniques.

It is essential to consciously apply the "brushing" technique to enlarge the lateral space of the root canal, which enhances the safety of root apex preparation. Additionally, the "pecking" method should be utilized deliberately to minimize the risk of apical deviation in root canals.

Technical Parameter

Power Input: 100V~240V, 50/60Hz, 800mA

Lithium Battery: 3.7V / 2000mAh

Power Output: DC15V / 1.6A

Speed Range: 100 rpm ~ 2500 rpm

Torque Range: 0.4Ncm ~ 5.0Ncm (4mNm ~ 50mNm)

Ratio of Contra-angle: 6:1

Weight with CA: 138.2g

Built in Apex Locator: Yes

Working Modes: FWD, REV, REC (SGP)

JMU Model Number (SKU): 21705006

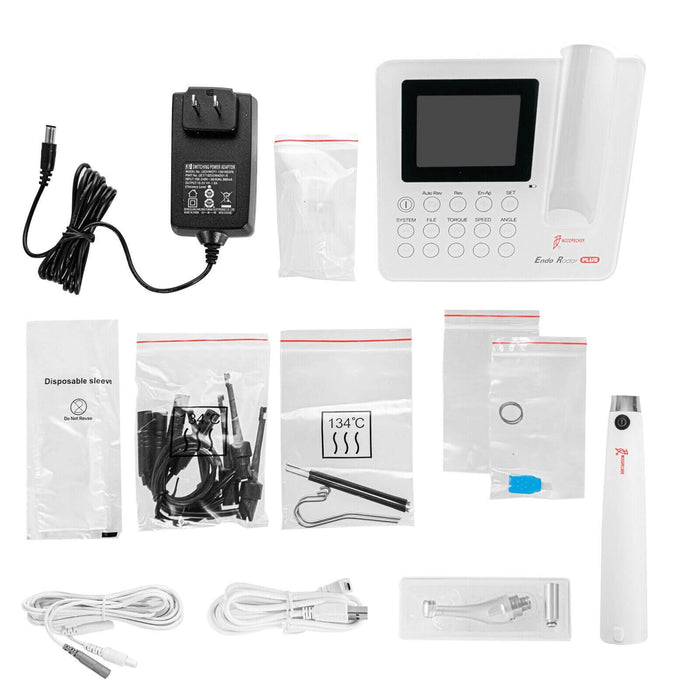

Packing List

• 1 Base

• 1 Motor Handpiece

• 1 Protective Silicone Cover

• 1 Contra-Angle

• 1 USB Cable

• 1 Lubricator

• 1 Measuring Wire

• 4 File Clips

• 1 Disposable Insulation Sleeve

• 2 Lip Hooks

• 2 Touch Probes

• 1 Adapter

• 1 Tester

• 1 Instruction Manual

• 1 Qualified Certificate

• 1 Warranty Card

• 1 Apex Locator Troubleshooting Card

• 1 Packing List

Warranty

ONE YEAR WARRANTY
