BIOART Dental Vacuum Forming Machine PlastVac-P7

BIOART Dental Lab 110V Vacuum Molding Forming Machine PlastVac-P7 Thermoforming Machine. Made in Brazil. 1400W Motor, Automatic Vacuum Control, Conventional and Rotary Plasticizing Processes. Accepts Round and Square Plates. Multi-application. One Year Warranty.

Features

• PlastVac P7 enables two plasticizing processes: Conventional and Rotary.
• The Bio-Art Plastvac P7 is a device exclusively designed for thermoforming processes (plasticizing) and is indicated for different applications, turning the production of trays simple, accurate and efficient.
• A powerful 1400W motor, it automatically generates the vacuum at the conformation instant. The Plastvac P7 does not need a special installation, since it is connected to the consulting / laboratory power grid.
• Compared with the machine made in China, the biggest advantage of the vacuum forming machine made in Brazil is that this machine adds the function of rotating and switching the heating surface, so that the upper and lower sides of the sheet material can be heated, and the heating is more uniform, so that it can operate thicker materials and complete more processing. This is something the most current Chinese made machines cannot do.
• Quick and practical, possibility the confection and delivery of sheets to the patient in a single session. On average the payback comes with the production of 30 sheets.
• The Plastvac P7 has a universal adapter for round of different dimensions, thicknesses and materials.
• Automatic vacuum control.

Technical Specifications

• Voltages: 110V
• Heating Power: 450W
• Motor Power: 1400 W
• Dimensions(WxDxH): 10.8”x10.2”x12.2”
• Weight: 10 lbs

Applicable Plates

• Sheet dimensions: Up to 6 mm thick
• Round plate: Ø120-Ø134,0mm
• Square plate: From 120x120mm to 130x130mm

Packing List

• PlastVac P7 x1
• Power cable x 1
• Glass beads x 250g
• Hexagon wrench x1
• Double-sided casting frame x1
• Heating device handle x1
• User manual x1
• Worksheet display x1
• Rotating ring handle x1
• Vacuum activated handle x1

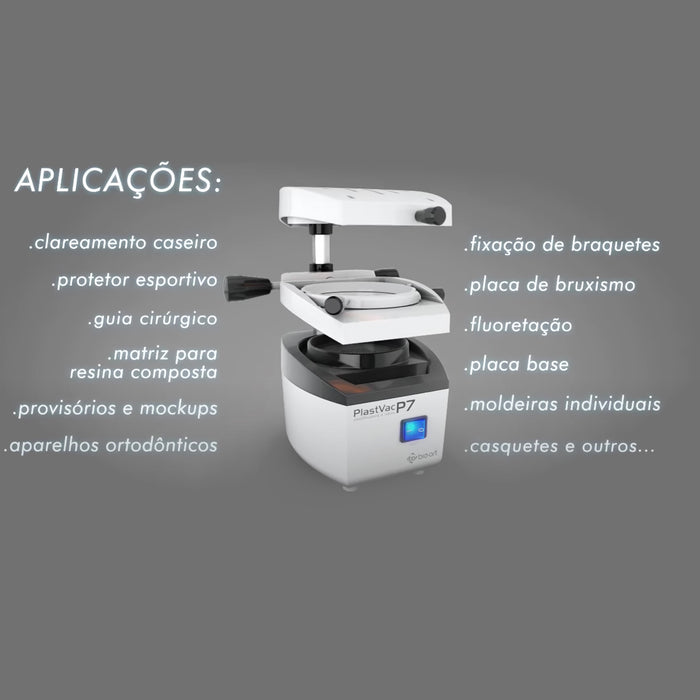

Applications

• Mouth guard;
• Matrix for composted resin;
• Put on a provisional;
• Caps;
• Fixing of brackets;
• Fluoridation mold;
• Surgical guide;
• Bite plate (bruxism);
• Base plate;
• Individual molds;
• Homemade whitening molds;
• Packaging of study models (file).

Warranty

One Year Warranty from the date of purchase.
